Table: 760*450 mm.....Max. Speed: 15000 RPM.....X/Y/Z travels: 650/450/450 mm.....Table Max. Load: 350 kg.....Net Weight of Frame: 3500 kg
M6 (15000 rpm) Overview

Accuracy standard implemented: ISO10791-2:2001 (JB/T8771.1998).

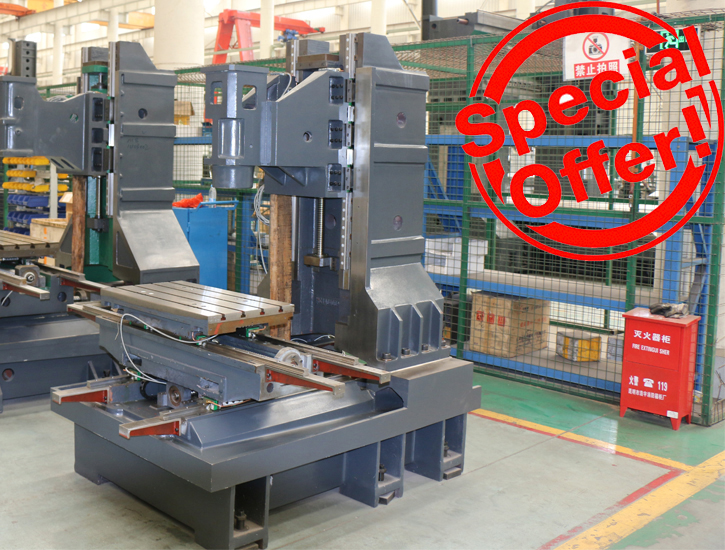

Smartech supplys both frame and complete machine, below is the introduction of frame.

Standard Components:
1.    High-quality castings processed with resin sand and wooden molds ;
2.    Hiwin, PMI or INA linear guidways on X, Y and Z axes;.
3.    Hiwin, PMI, BSG or HPS (brand of) ball screws,
4.    NSK or FAG bearings for supporting ball screws ;
5.    Royal or POSA spindle, 12000/15000rpm for M8, 15000 rpm for M6, direct-drive ;
6.    Beijyu or Haocheng brand of tool unclamping system ;
7.    R&W couplings from Germany ;
8.    Keyarrow (Taiwan) brand of telescopic covers, stainless steel cover on all axes ;
9.    Centralized lubrication system of Byjur or HERG brand ;
10.  Coolant system installed.
* Same price for all the brands mentioned.

Optional Components:
1     15000 rpm Spindle ;
2     Outside guarding, standard or specially designed for client ;
3     Central oil coolant for the spindle ;
4     Chip conveyor: helix type, chain type ;
5     Coolant pump of Taiwan brand Walrus ;
6     ATC: drum type, arm type or chain type.
7     CNC pre-installed for client, complete machine ready to use.



M6 (15000 rpm) Specifications
M6 (15000 rpm) - Comparar:

M6
Capacity
X Axis 650 mm
Y Axis 450 mm
Z Axis 450 mm
Spindle to Column Slideway 512 mm
Spindle Nose to Worktable 115-565 mm
Worktable
Table Size 450*760 mm
Max. Load 350 kg
Number of T-slots 4
Size of T-slot  14
Distance between T-slots  100
Spindle
Spindle Taper - Dia. BBT40 / BT40 - 120
Max. Speed 15000 rpm
Spindle Motor Recommended 5.5 Kw
Feeding
X, Y Axis Ball Screws Spec. (Dia. / Lead) 32 / 12
Z Axis Ball Screw Spec. (Dia. / Lead) 36 / 10
X-axis Linear Guideways MSA30
Y-axis Linear Guideways MSA35
Z-axis Box-way MSR35 with 6 carriages
Rapids on X/Y/Z 48 / 48 / 48 m/min
Drive Motor Recommended (X / Y / Z)
Accuracy
Positioning Accuracy 0.005/300
Repeatability 0.003/300
Others
Net Weight 3500 Kg
Remarks
