M8A (5-axis)

M8A (5-axis)

Diameter of Table:250 mm.....Max. Speed: 12000/15000 RPM.....X/Y/Z travels: 600/550/350 mm.....Table Max. Load: 100 kg.....Net Weight of Frame: 4900 kg
M8A (5-axis) Overview

                                                                                            M8 with short-nose spindle

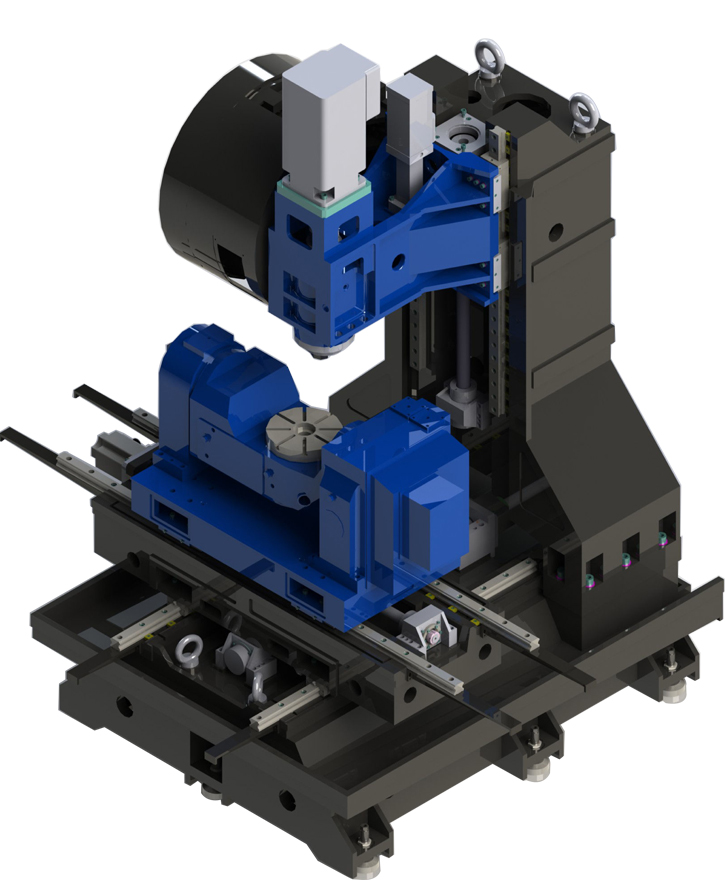

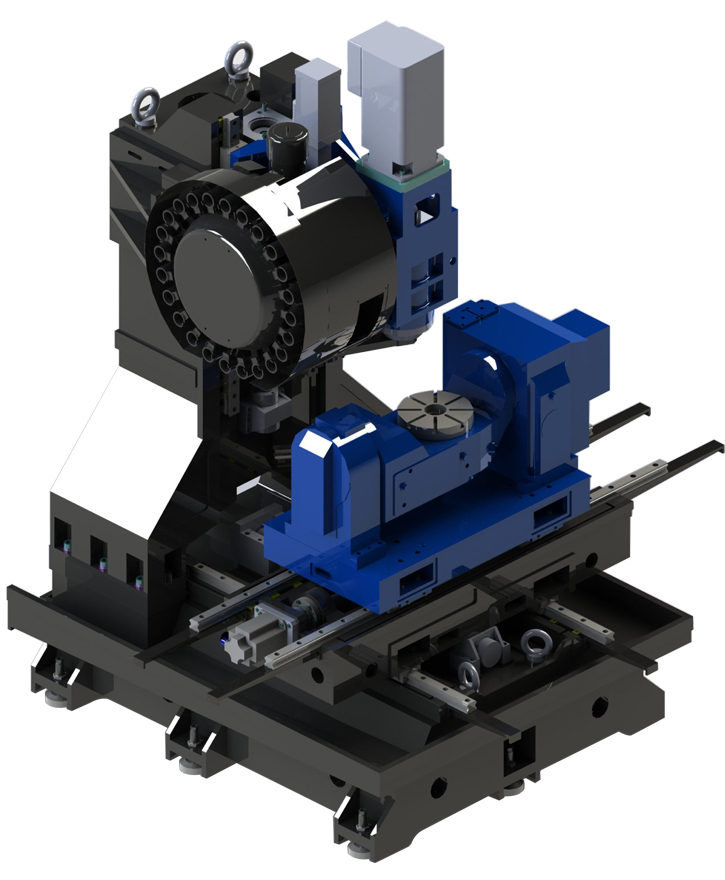

                                                                   M8 with rotary and tilting table (click for more details)





Accuracy standard implemented: ISO10791-2:2001 (JB/T8771.1998).

Smartech supplys both frame and complete machine, below is the introduction of frame.

Standard Components:
1.    High-quality castings processed with resin sand and wooden molds ;
2.    Hiwin, PMI or INA linear guidways on X, Y and Z axes;.
3.    Hiwin, PMI, BSG or HPS (brand of) ball screws,
4.    NSK or FAG bearings for supporting ball screws ;
5.    Royal or POSA spindle, 12000/15000 rpm, drect-drive ;
6.    Beijyu or Haocheng brand of tool unclamping system ;
7.    R&W couplings from Germany ;
8.    Keyarrow (Taiwan) brand of telescopic covers, stainless steel cover on all axes ;
9.    Centralized lubrication system of Byjur or HERG brand ;
10.  Coolant system installed.
* Same price for all the brands mentioned.

Optional Components:
1     15000 rpm Spindle ;
2     Outside guarding, standard or specially designed for client ;
3     Central oil coolant for the spindle ;
4     Chip conveyor: helix type, chain type ;
5     Coolant pump of Taiwan brand Walrus ;
6     ATC: drum type, arm type or chain type.
7     5-axis/4-axis table built-in;
8     CNC pre-installed for client, complete machine ready to use.



M8A (5-axis) Specifications
M8A (5-axis) - Comparar:

M8A
Capacity
X Axis 500 mm
Y Axis 550 mm
Z Axis 350 mm
Spindle Nose to Worktable (Surface Vertical) 0-220 mm
Spindle Nose to Worktable (Surface Horizontal) 0-350 mm
Worktable
Table Diameter 255 mm
Max. Load 100 kg
Center Hole Size Φ 50 H7× 17 depth
Minimum Indexing Unit   18
Distance between T-slots  0.001°
Indexing Accuracy  20”
Repeatability 4”
Spindle
Spindle Taper - Dia. BBT40 / BT40 - 150
Max. Speed 12000/15000 rpm
Spindle Motor Recommended 7.5 Kw
Feeding
X, Y Axis Ball Screws Spec. (Dia. / Lead) 40 / 12
Z Axis Ball Screw Spec. (Dia. / Lead) 45 / 12
X-axis Linear Guideways MSA45
Y-axis Linear Guideways MSA45
Z-axis Box-way MSR45
Rapids on X/Y/Z 48 / 48 / 48 m/min
Drive Motor Recommended (X / Y / Z)
Accuracy
Positioning Accuracy 0.005/300
Repeatability 0.003/300
Others
Net Weight 4400 Kg
