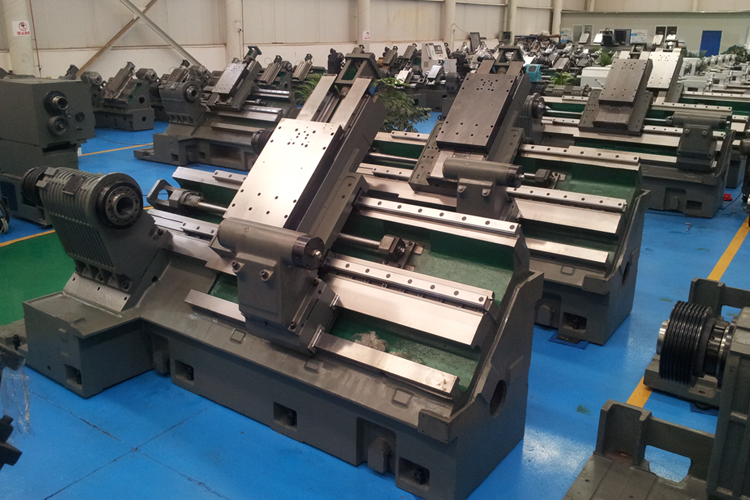

Lathe Frame
Accuracy standard implemented: ISO13041-1:2004,MOD (GB/T16462.1-2007).
          Smartech supplys both frame and complete machine, below is the introduction of frame.
Standard Components:
1.    High-quality castings processed with resin sand and wooden molds ;
2.    Rexroth, Hiwin, PMI or HPS (brand of) linear guideways on X & Z axes ;
3.    Hiwin, PMI, I+F or HPS (brand of) ball screws ;
4.    NSK or FAG bearings for supporting ball screws ;
5.    6000 rpm spindle unit of one-piece structure (indepent spindle for CK4550L, CK4558L and CK4563L) ;
6.    Pulleys and belts for spindle motor ;
7.    R&W couplings from Germany ;
8.    Hydraulic tailstock (no tailstock in CK4530L) ;
9.    Centralized lubrication pump of Byjur or HERG brand ;
10.  Coolant system installed ;
11.  Place for encoder machined;
12.  Customized colors of painting.
* Same price for all the brands mentioned.
Optional Components:
1     Hydraulic chuck and rotary cylinder ;
2     Servo turret or hydraulic tool turret;
3     Hydraulic station and oil circuit ;
4     Outside guarding, standard or specially designed for client ;
7     Chip conveyor: helix type, chain type ;
8     CNC pre-installed for client, complete machine ready to use.
