BMC Frame

Accuracy standard implemented: ISO10791-2:2001 (JB/T8771.1998).

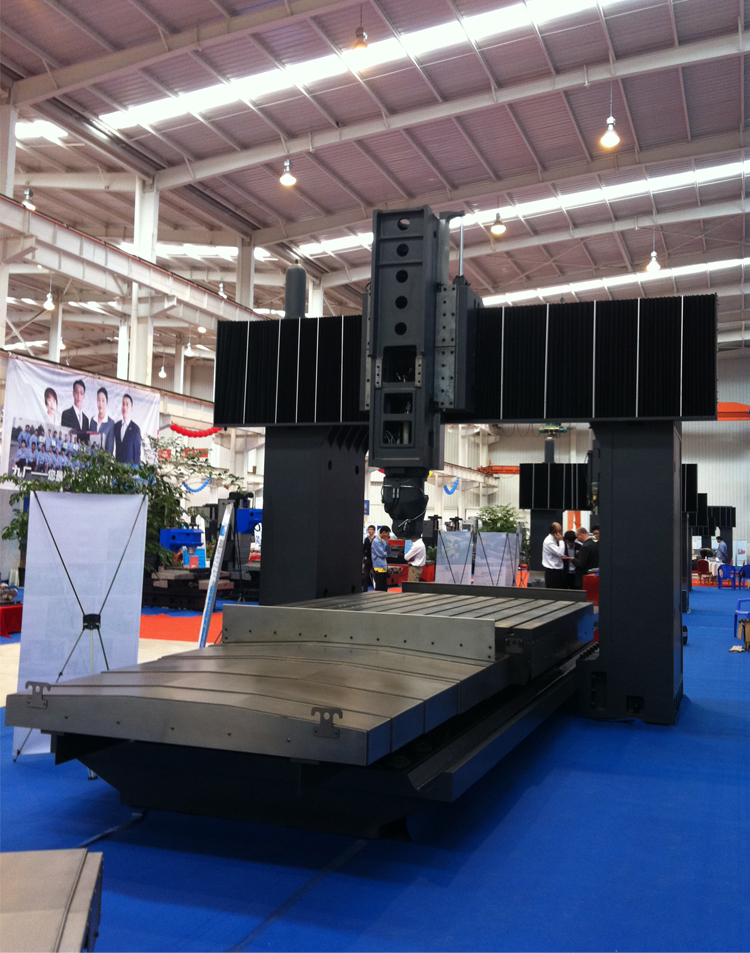

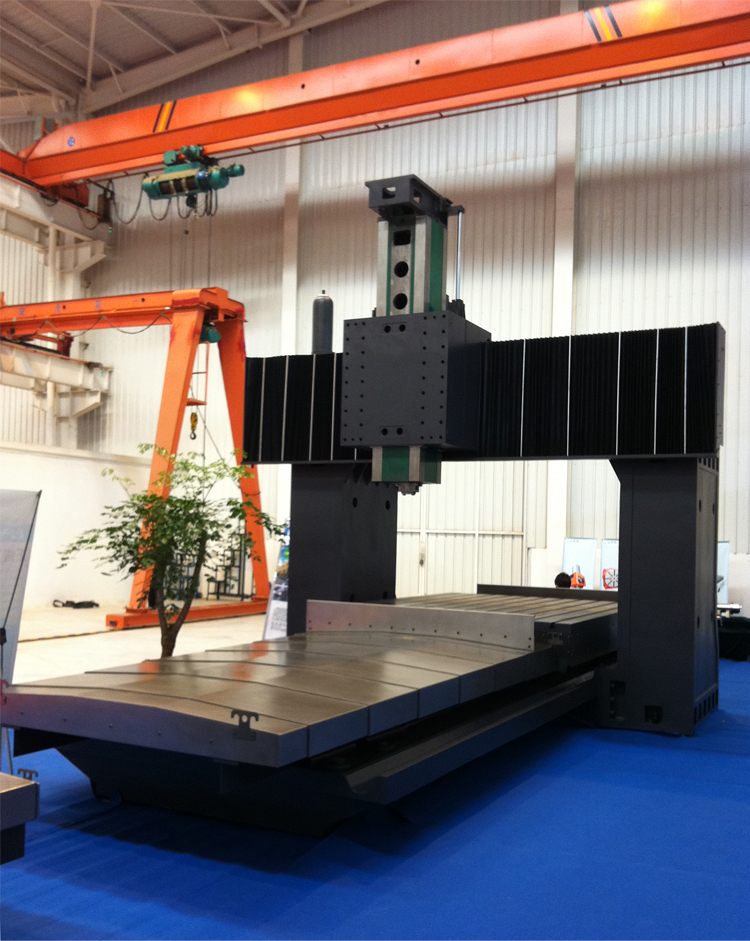

Smartech supplys both frame and complete machine, below is the introduction of frame.
Standard Components:
1.    High-quality castings processed with resin sand and wooden molds ;
2.    Imported linear guideways on X and Y axes (X axis box-way optional). Harden & ground on Z axis slideway and Turcite-B coated with precise scraping ;
3.    Rexroth, BSG or HPS (brand of) ball screws ;
4.    NSK or FAG bearings for supporting ball screws ;
5.    Gear-drive box of French brand, rack of Swiss brand, spindle reducer of German brand ;
6.    Beijyu or Haocheng brand (Taiwan) of tool unclamping system ;
7.    R&W or Mayr couplings from Germany ;
8.    Keyarrow (Taiwan) brand of telescopic covers, stainless steel cover on all axes ;
9.    Centralized lubrication system of Byjur or HERG brand ;
10.  Hydraulic balancing cylinder.
* Same price for all the brands mentioned.
Optional Components:
1     Replace box-type guideway with linear railway ;
2     Direct-drive spindle or with ZF reducer ;
3     Universal milling head, right-angle milling head or lengthened milling head ;
4     Coolant through spindle ;
5     Coolant pump of Taiwan brand Walrus ;
6     Outside guarding, standard or specially designed for client ;
7     Chip conveyor: helix type, chain type ;
8     CNC pre-installed for client, complete machine ready to use ;
9.    ATC: drum type, arm type or chain type.
