WZ545 (5-axis)

WZ545 (5-axis)

Diameter of Table:650 mm.....Max. Speed: 12000/15000 RPM.....X/Y/Z travels: 500/450/400 mm.....Table Max. Load: 300 kg.....Net Weight of Table: 1200 kg
WZ545 (5-axis) Overview

Accuracy standard implemented: ISO10791-2:2001 (JB/T8771.1998).

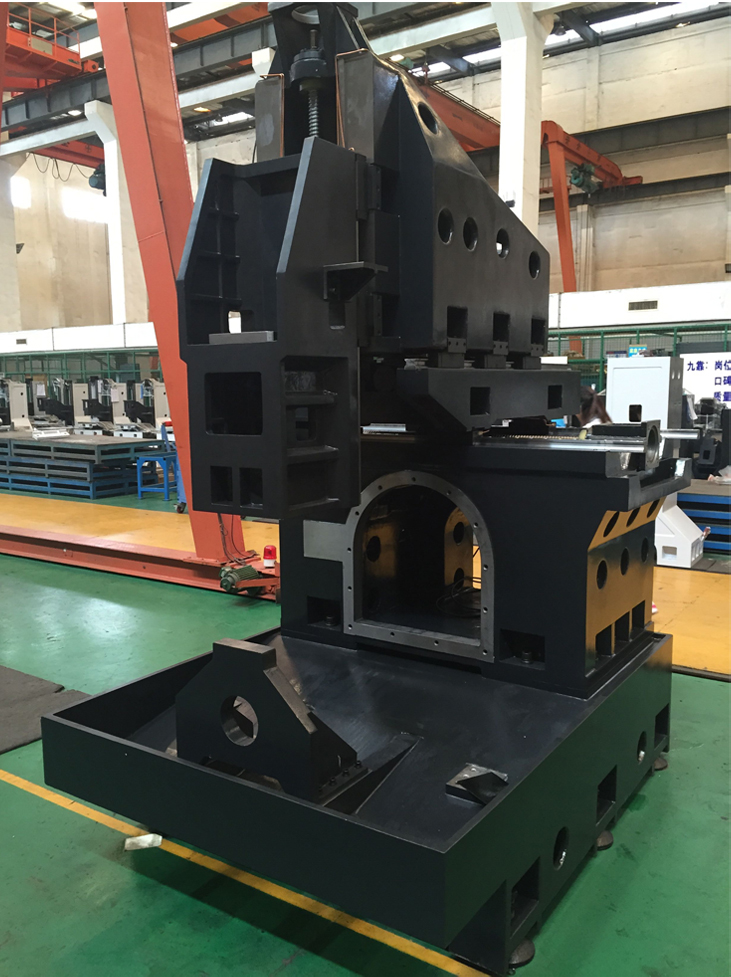

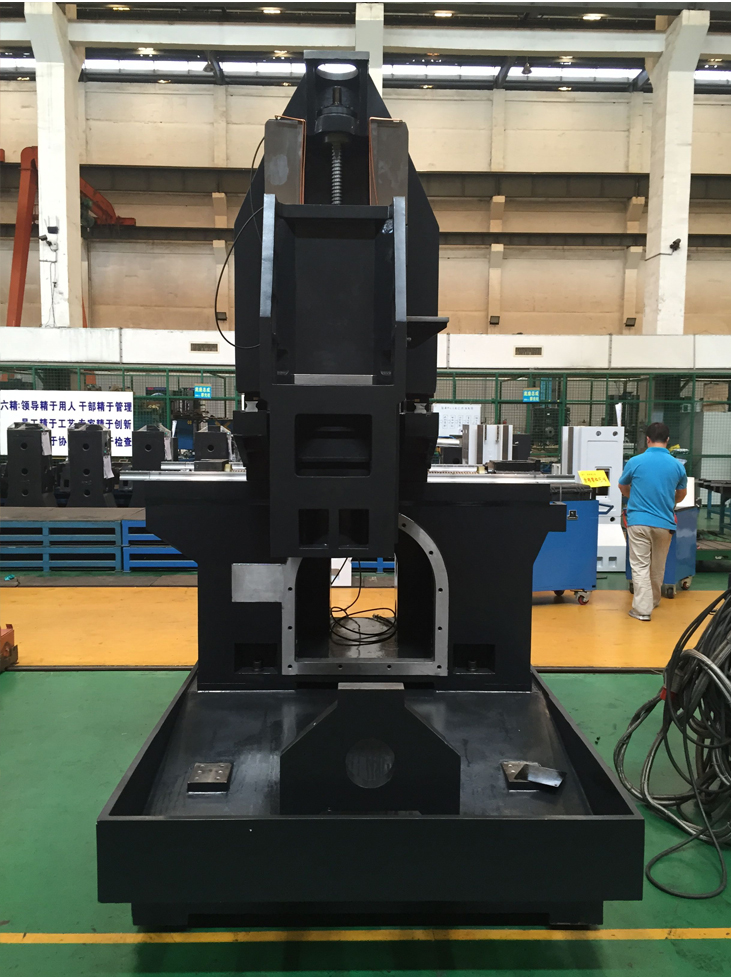

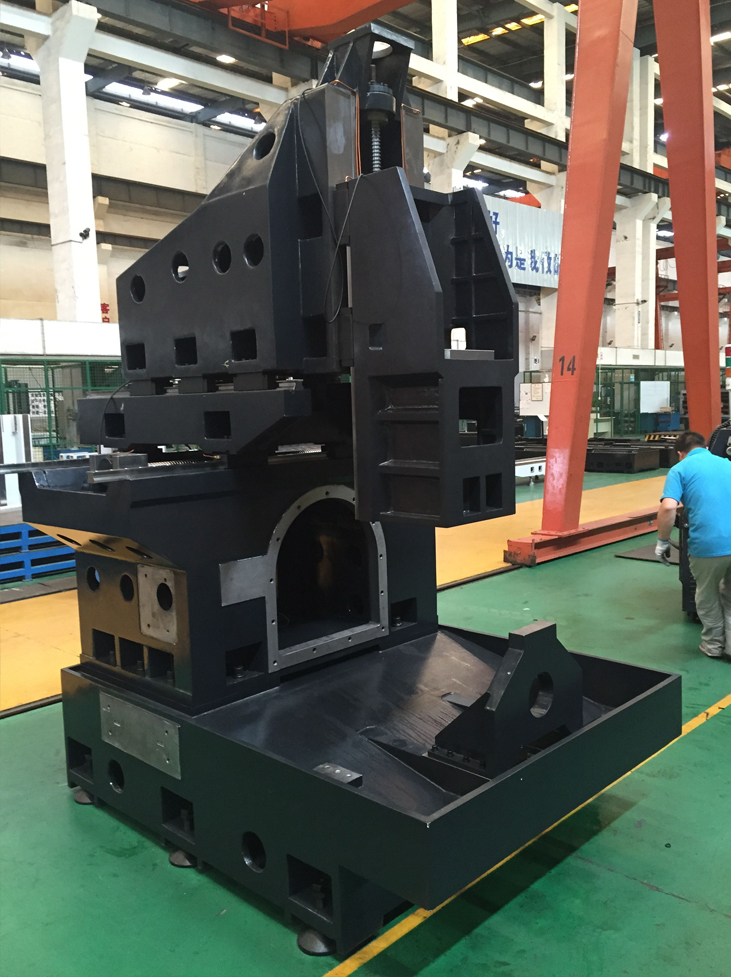

Smartech supplys both frame and complete machine, below is the introduction of frame.



Option: without rotating & tilting table





Standard Components:
1.    High-quality castings processed with resin sand and wooden molds ;
2.    Hiwin, PMI or INA linear guidways on X, Y and Z axes;.
3.    Hiwin, PMI, BSG or HPS (brand of) ball screws,
4.    NSK or FAG bearings for supporting ball screws ;
5.    Royal or POSA spindle, 12000/15000 rpm, drect-drive ;
6.    Beijyu or Haocheng brand of tool unclamping system ;
7.    R&W couplings from Germany ;
8.    Keyarrow (Taiwan) brand of telescopic covers, stainless steel cover on all axes ;
9.    Centralized lubrication system of Byjur or HERG brand ;

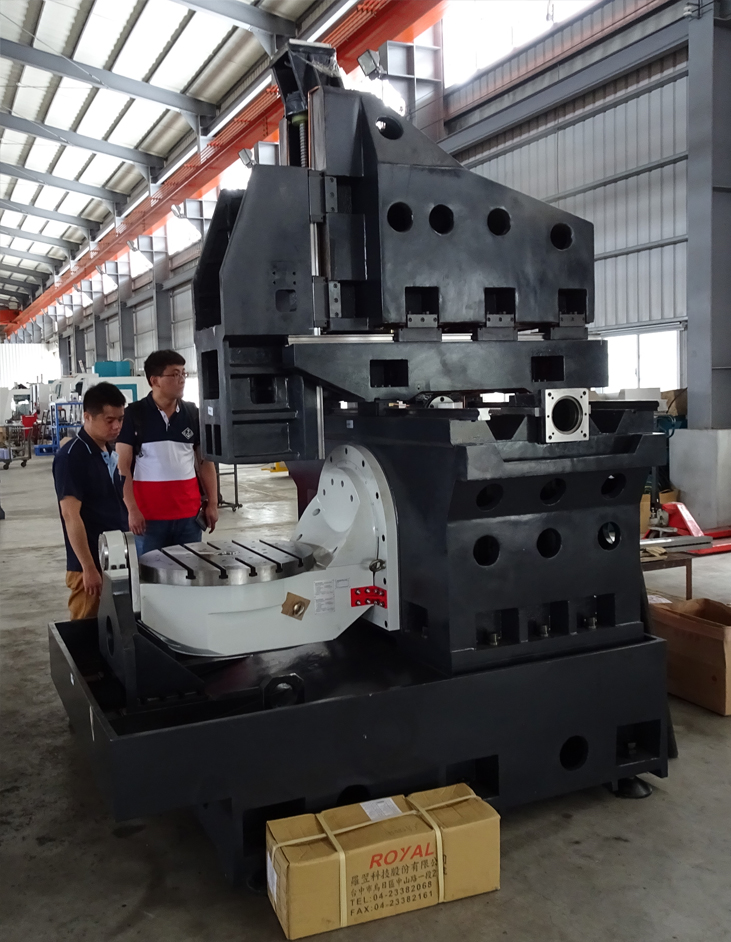

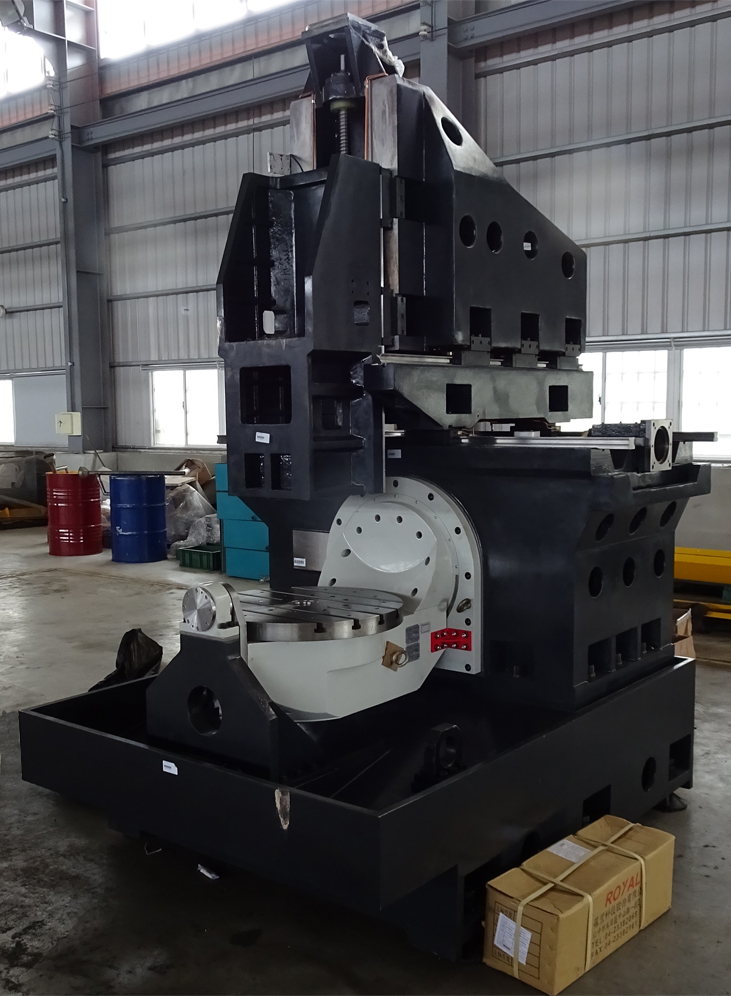

10.  5-axis table built-in.
* Same price for all the brands mentioned.

Optional Components:
1     15000 rpm Spindle ;
2     Outside guarding, standard or specially designed for client ;
3     Central oil coolant for the spindle ;
4     Chip conveyor: helix type, chain type ;
5     Coolant pump of Taiwan brand Walrus ;
6     ATC: drum type, arm type or chain type.
7     CNC pre-installed for client, complete machine ready to use.

WZ545 (5-axis) Specifications
WZ545 (5-axis) - Comparar:

WZ545
Capacity
X Axis 500 mm
Y Axis 450 mm
Z Axis 400 mm
Spindle Nose to Worktable (Surface Horizontal) 200-600 mm
Worktable
Table Diameter 650 mm
Max. Load 300 kg
Center Hole Size Φ 50 H7× 17 depth
Minimum Indexing Unit   0.001°
Tilting Degree ±110°
Indexing Accuracy  10”
Repeatability 4”
Spindle
Spindle Taper - Dia. BBT40 / BT40 - 150
Max. Speed 12000/15000 rpm
Spindle Motor Recommended 15 Kw
Feeding
X, Y Axis Ball Screws Spec. (Dia. / Lead) 45 / 10
Z Axis Ball Screw Spec. (Dia. / Lead) 45 / 10
X-axis Linear Guideways MSA45
Y-axis Linear Guideways MSA45
Z-axis Box-way MSR45
Rapids on X/Y/Z 24 / 24 / 24 m/min
Drive Motor Recommended (X / Y / Z)
Accuracy
Positioning Accuracy 0.005/300
Repeatability 0.003/300
Others
Net Weight of Frame + Table 7500 + 1200 Kg
